ALLOW YOUR PATIENTS TO LIVE LIFE TO THE FULL
KeraSoft Thin delivers visual acuity comparable to that of rigid options with all day comfort that ensures all day wear, every day, whatever your patient wants to do
MAKE SENSE OF KERATOCONUS
KeraSoft Thin has a new fitting technique based on measurements taken from Tangential topography. Our simple Base Curve Calculator takes steepest and flattest measurements from Central Sim K readings and those on the 5mm ring to predict First Choice Lens for Central and Low cones. This calculation significantly reduces chair time when fitting KeraSoft Thin.
Read the First Choice Lens: Tangential Maps for more details and the KeraSoft Thin Fitting Guidance on how to interpret fit on eye using the MoRoCCo VA system.
PARAMETER RANGE
- Base Curve 7.40 to 9.40
- Diameter 14.00 14.50 15.00mm
- Sphere +/- 30.00
- Cyl -0.50 to -15.00
- Axis 1° to 180° (1° steps)
- Peripheries FLT4 to FLT1 STD STP1 to STP4
- SMC Up to 2 sectors
MATERIAL
Filcon V 3 SiH, 74% water** (3 month replacement)
Filcon II 3, 77% water (12 month replacement
*Sector Management Control ** Definitive SiH

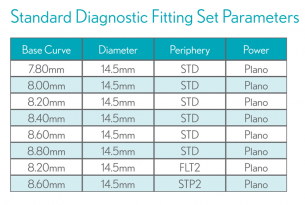

FITTING SET
KeraSoft Thin is fitted using an 8 lens Fitting Set. There are 6 STD (Standard) periphery lenses ranging from 7.80 to 8.80 mm base curves
1 × 8.20: FLT2 periphery lens (nipple cones)
1 × 8.60: STP2 periphery lens (post surgical)

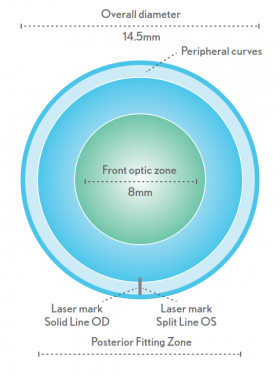

LENS DESIGN
- Front surface asphere/aspheric toric
- Large back optic diameter to allow full drapage
- Adjustable periphery fits any corneal shape
FULL PERIPHERY OPTIONS
The entire periphery can be steepened or flattened independently of the overall base curve. Available peripheries:
STANDARD
STEEP1, STEEP2, STEEP3, STEEP4
FLAT1, FLAT2, FLAT3, FLAT4
KeraSoft Thin Collateral
Make Sense of Keratoconus
Why Choose Thin?
Fitting Guidance
First Choice Lens
Order Form
KeraSoft Thin Fitting Protocols
Product Outline
| Product Name | KeraSoft® Thin / IC |
| Modality | 12 months – Hydrogel / 3-months – SiH |
| Lens Materials | Contaflex Clear 77 / Definitive Clear 74 |
| Lens Color | Clear |
| UV Protection | No |
| Water Content | 77% Hydrogel / 74% SiH |
| Oxygen Transmittance (*Dk value SiH) | 60 x 10-11 (cm2/sec) • [mL02 / (mLxmmHg)] |
| Oxygen Transmittance (*Dk value Hy) | 46 x 10-11 (cm2/sec) • [mL02 / (mLxmmHg)] |
| Center Thickness @ -3.00 | (Thin) 0.20mm / (IC) 0.40 mm |
| Base Curves | 7.40 to 10.0 mm (0.20 mm steps) |
| Diameters | 14.00 to 15.00 mm (0.50 mm steps) |
| Sperical Powers | +/- 30.00 DS (0.25 D steps) |
| Cylinders | – 0.75 to -16.00 DC (0.25 D steps) |
| Axes | 1 to 180 (1 steps) |
| Peripheries | FLT1 to FLT4 | STD | STP1 to STP4 |
| Engraving / Marking | 6 o’clock |
| Fitting | Fitting Set System |
| Volume Per Bottle | Single lens in one bottle |
| MDA Registration No | GC9159924-181687 / GC2533125-194572 |
